Product introduction

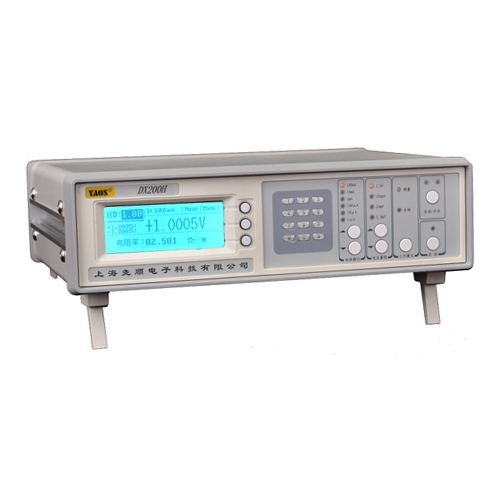

1.  DX200H is an resistivity testing instrument that is independently designed and produced by Xi'an HongHu Testing Instrument Co., Ltd., which has the entire intellectrual property of the instrument.

2.  The system is composed by high-precision constant current power supply, high-precision voltmeter, and embbeded smart management system.

3.  The system uses 192*64 resolution LCD screen to display testing process and parameters. The operation procedure is simple and concise, with testing information clearly showing up in the LED display.

4.  We provide custom-made service according to customers' specific needs. We accept OEM order from customers as well.

5.  We provide custom-made service to produce testing fixture according to customers' specific needs.

PRODUCT_CONTENT1_EN

1. 192*64 resolution LCD screen for display.


2. Has three testing modes to choose:

   Weight mode: Input cable's weight, length, and material's density, and the system will automatically calculate this model's cross-section area, which significantly simplifies a cable manufacturer to test iregular shaped cable.

   Diameter mode: Input cable's diameter, and the system will automatically calculate material's cross-section area.

   Length-width mode: Input the length and width of material (such as a copper plaque), and the system can automatically calculate testing model's cross-section area.


3. Automatically display tested forward voltage and reverse voltage during testing procedure.

4. Direct display the testing results of resisitivity: According to customer's input parameters, directly display the model's resisitivity value after the completion of the test of forward/reverse voltage.

5. Automatically save all input parameters, system current output, voltage ranage during model test.Unless a customer modifies and has done testing before, the system keeps this setting unchanged, which significantly simplifies testing procedure.


Technical parameter

Main technical standards:

1. Testing range: 10^-4—10⁶Ω with resolution of 10^-7Ω.

2. Digital voltmeter range and current output option:

    i. Voltmeter range: 2 mV, 20 mV, 200 mV, 2V

    ii. Current output option: 10uA,100uA,1mA,10mA,100mA, 1A

3. Testing (voltage display) precision and stability:

    i. Service voltage range 20mV -- 2V and service current output option of 10uA -- 100mA:  ±(0.1% digit +6 characters)

    ii. Service voltage range 2mV and service current output option of 1A： ±(0.25% digit +8 characters)

    iii. Display: 4? digits displaying 0 -- 1.9999 and the corresponding unit.

4. Testing fixture:

   DX200F series: compatible for testing models with: 1mm² ~ 2500mm²

   Electrode distance: 100~1000mm

   DX200FB series: compatible for testing models with 1mm~30mm in height and 1mm~50mm in width

5. Power source: 220±10%   50HZ or 60HZ; Power < 50 Watt

6. Dimension:

    Instrument: 345mm*365mm*110mm(L×W×H)

    Testing frame: 1460*210*120(L×W×H)

                            1630*240*140(L×W×H
